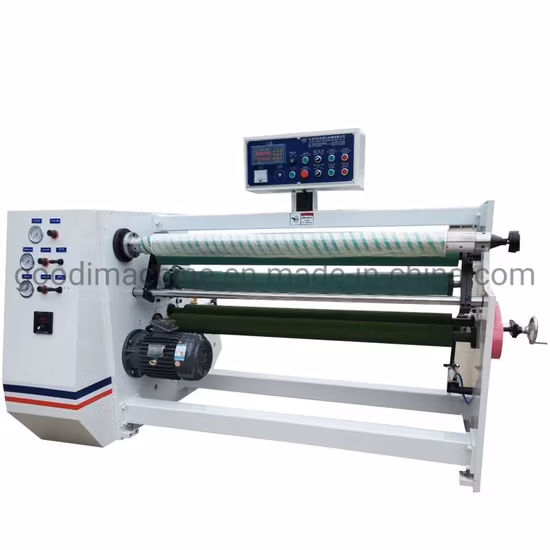

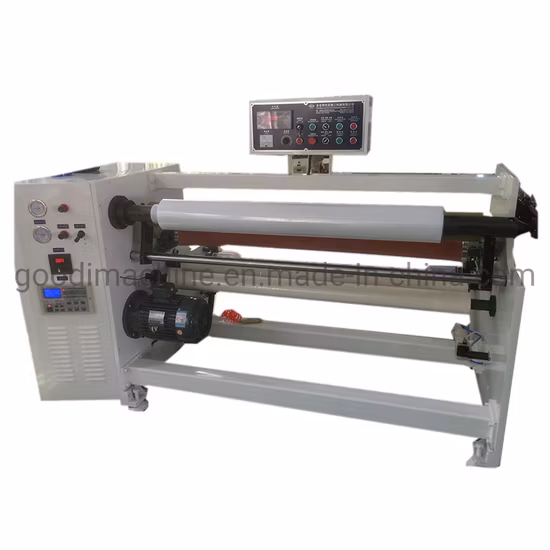

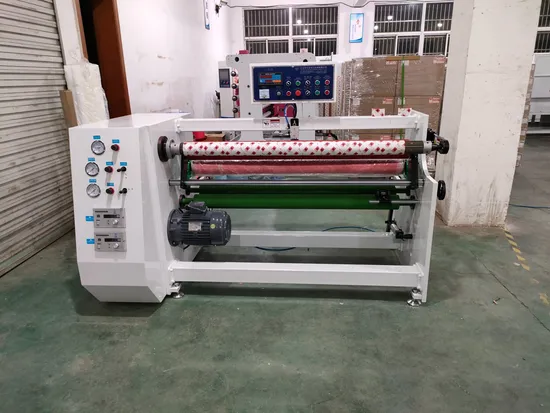

Adhesive Masking Tape Rewinding Machine Autoamtic OPP Packing Tape Rewinder

Basic Info.

Model NO.	806
Classification	Tape Rewinding Machine
Applicable Process	Process Materials
Suitable Substrates	Adhesive Tapes
Packaging Material	Plastic
Warranty of Core Components	1 Year
Automatic Grade	Automatic
Machinery Test	Provided
Paper Core Diameter	25-76mm
Weight	1500kg
Transport Package	Wooden Box
Trademark	Goodi
Origin	China
HS Code	8477800000
Production Capacity	20 Set/ Month

Product Description

Suit for rewinding various tape such as BOPP tape, PE, PET, masking tape, double-sided tape, foam tape and paper, film etc many other adhesive and non-adhesive materials.

operation width		1300mm/1600mm
max unwinding diameter		800mm
max rewinding diameter		300mm
rewinding speed		120m/min
Machine power		4kw
Unwinding shaft		3'' pneumatic shaft
Unwinding tension		Pneumatic brake
rewinding tension		5KG magnetic brake

Feature:

1,Air shaft with Automatic air inflation system
2,Automatic smoothing device to eliminate the wrinkle and air bubbles
3, Automatic tension controller and magnetic powder brake,ensure unwinding and rewinding tension can be adjusted
4,Two section length counter make sure the accurate of the rewinding length.

FAQ
1
Q:Are you a factory or trading company?

A:We are a factory and we have years of experience of manufacture of rewinding and cutting machines.
2
Q:Does the machine be able to cut different size of tapes?
A:Yes absolutely , you can set any width by the PLC controler.
3
Q:Do you make machines according to specifications?
A:Yes,we do design different machines for special purpose.
4
Q:Do you have the manual book ?
A:Yes, and if necessary , our engineers are available to service overseas .And our machines are highly automatical and easy to operate.
5
Q:How long does it usually take you to make the delivery.
A:As a rule ,we deliver our machine within 1 month , and of cause it will take longer for special orders , but in no case would it take longer than 3 months.
6
Q:The voltage in our country is different from yours,does the machine can be changed?
A:Yes, we can make the change for customers.
